基本参数(Basic parameters) | 性能参数（Performance specifications） | ||
工作重量 (KG)Workingweight | 16400 | 爬坡性能 (°) Climbing performance | 30 |
发动机额定功率 (kw/rpm)power | 131/ 1850 | 松土器型式 Type of scarifier | 三齿 |
铲刀容量(m3) Blade capacity | 4.5m3 | 松土深度(mm) Loosening depth | 570 |
发动机型号 Engine Model | WD 10G 178E25 WP 10G 178E355 | 松土器提升高度(mm) Lifting height of scarifier | 600 |
整机尺寸(Dimensions) | 作业范围及参数（Operating scope and parameters） | ||
总长(mm) Overall length | 4990 | 铲刀提升高度(mm) Blade lifting height | 1095 |
总宽度(mm) Overall width | 3440 | 铲刀深度(mm) Blade depth | 540 |
总高度(mm) Transport height | 3110 | 前进各档速度 (km/h) Forward speed of each gear | F1 :0~3.29 |
履带板数量 (每边) Number of track shoes | 37 | F2 :0~5.82 | |
履带板宽度(mm) Track shoe width | 510（ 560、 610） | F3 :0~9.63 | |
履带中心距(mm) Track center distance | 1880 | ||

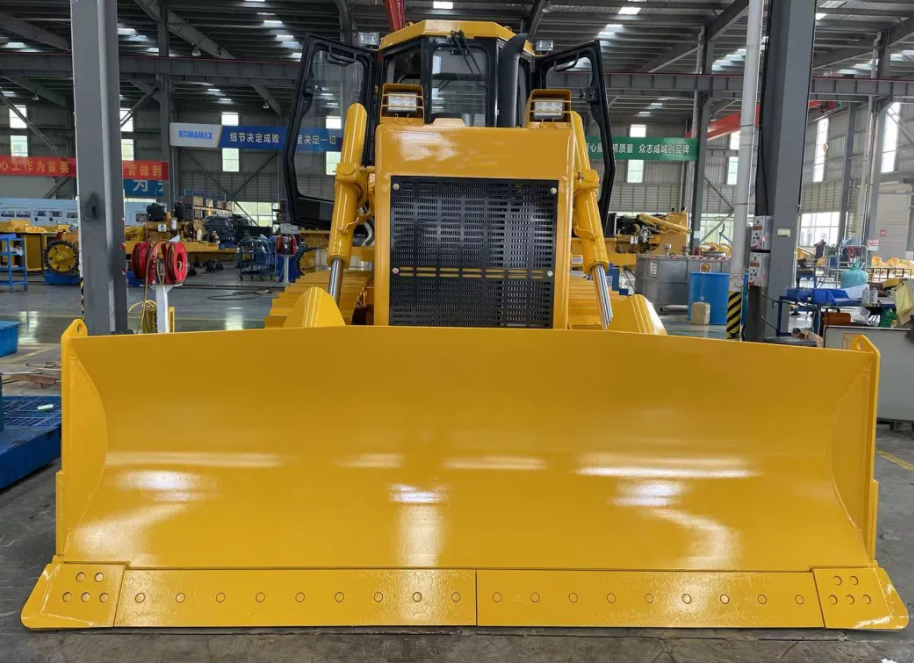

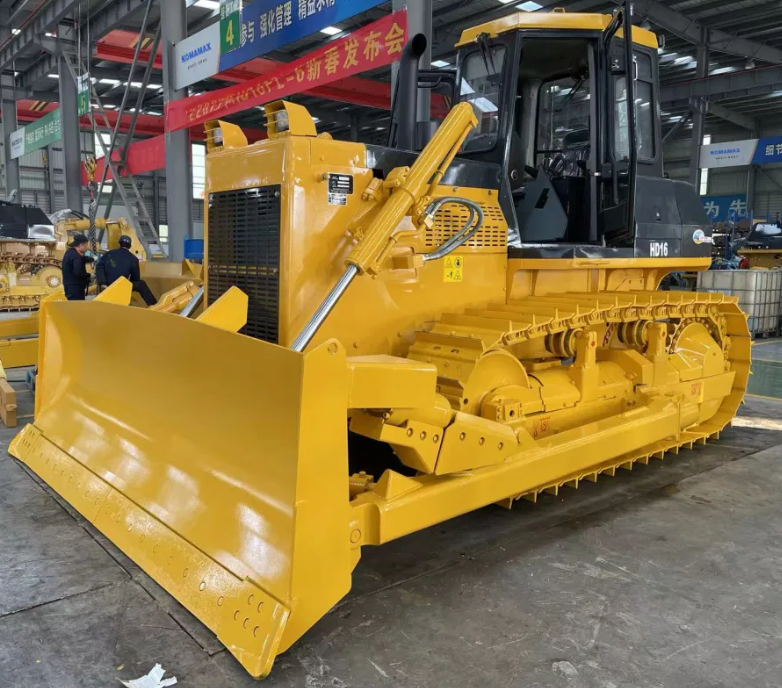

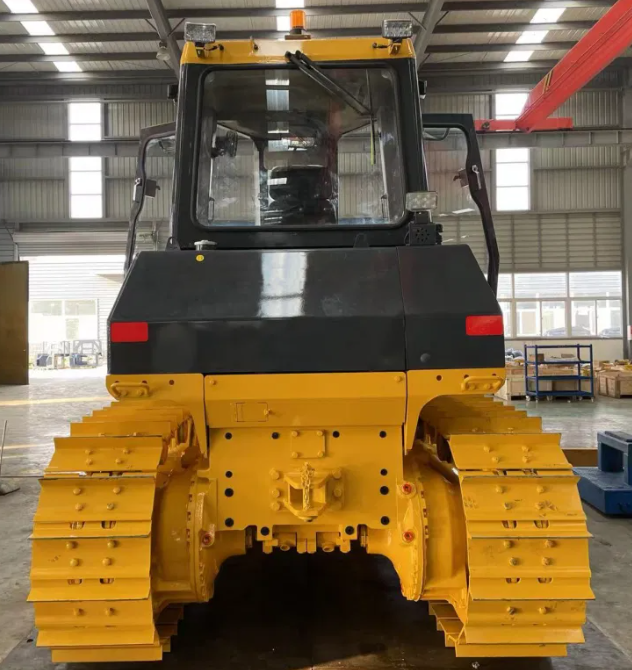

The machine has the advantages of reasonable layout, labor-saving operation, low oil consumption, convenient maintenance and high quality. It can be equipped with traction frame, shovel, loosener and winch, which can adapt to various working conditions.
