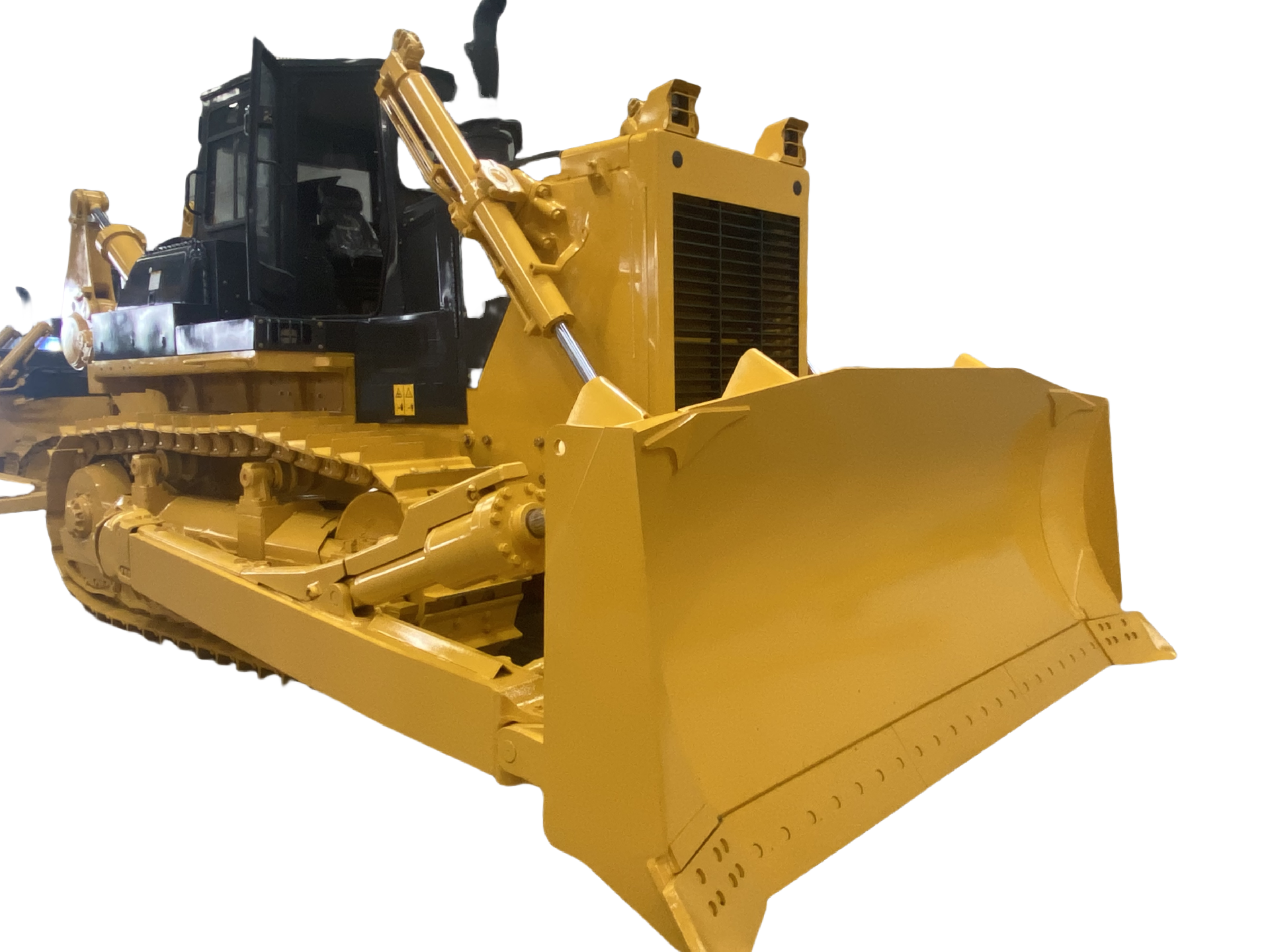

SD32　Standard Bulldozer

SD32 bulldozer is an upgraded product developed and designed according to the market situation.
Its technology and reliability have reached the leading level in China. The chassis of the whole machine has been tested by domestic and foreign markets for nearly 30 years, with excellent quality and stable and reliable performance. It is mainly suitable for water conservancy and hydropower, metallurgical mines, road traffic, ports and docks, oil and coal, forest logging, and is an indispensable mechanical equipment for national defense projects, urban and rural roads and other construction and water conservancy construction.

Product parameters：

基本参数(Basic parameters)

性能参数（Performance specifications）

工作重量

(KG)Workingweight

37200

爬坡性能 (°)

Climbing performance

发动机额定功率

(kw/rpm)power

257/2000

松土器型式

Type of scarifier

单齿三齿

铲刀容量(m3)

Blade capacity

直10半U11.7角6.2

松土深度(mm)

Loosening depth

单470.三543

发动机型号

Engine Model

Cummins NTA855-C360S10 QSNT-C345S30

松土器提升高度(mm)

Lifting height of scarifier

单995.三883

整机尺寸(Dimensions)

作业范围及参数（Operating scope and parameters）

总长(mm)

Overall length

6535

铲刀提升高度(mm) Blade lifting height

1560/1560/1703

总宽度(mm)

Overall width

4150

铲刀深度(mm)

Blade depth

560/560/630

总高度(mm)

Transport height

3515

前进各档速度 (km/h)

Forward speed of each gear

F1:0~3.6

履带板数量 (每边)

Number of track shoes

F2:0~6.6

履带板宽度(mm)

Track shoe width

560

F3·0~11.5

履带中心距(mm)

Track center distance

2140

Product features：

power system

● Equipped with WP12/QSNT-C345 electronic control engine, which meets the emission requirements of the national non-road machinery country III, with strong power, high efficiency and energy saving, and low maintenance cost;

● The torque reserve coefficient is large, and the rated power reaches 257kW;

● Adopt radial seal air intake system to effectively improve the service life of the engine.

Dynamic system

● The transmission system is perfectly matched with the engine curve, with wider high-efficiency area and higher transmission efficiency;

● Shanplatinum transmission system has been tested for a long time in the market, with stable performance and reliable quality.

Work adaptability

● Stable and reliable Shanplatinum chassis system, suitable for all kinds of harsh working conditions;

● The product has long grounding length, large ground clearance, smooth driving and good passability;

● According to the specific working conditions, it can be equipped with a straight shovel, a semi-U shovel, a U shovel, a corner shovel, a coal shovel, a rock shovel, a sanitation shovel, a scarifier, a towing frame, etc., which has stronger working adaptability and comes standard with LED working lights.

Improve the lighting ability of night construction, which is safer and more reliable.

Maintainability

● The structural parts inherit the excellent quality of mature products of Shanplatinum;

● The electrical wiring harness is protected by corrugated pipe, and the wire divider is used to divide the wires, so the protection level is high;

● Open side shield for large space, which is more convenient for maintenance;

● The lubrication and maintenance point of the whole machine is moved to the outside of the machine body, which makes the maintenance convenient and quick.Driving environment

● Hexahedral cab, with large internal space and wide field of vision, can be equipped with FOPS/ ROPS as required, which is safe and reliable;

● Electronically control the hand and foot throttles, making the operation more accurate and comfortable;

● Equipped with intelligent display and control terminals, heating and cooling air conditioners, etc., to provide a richer humanized driving experience, so that you can know the system status at any time, which is intelligent and convenient.
