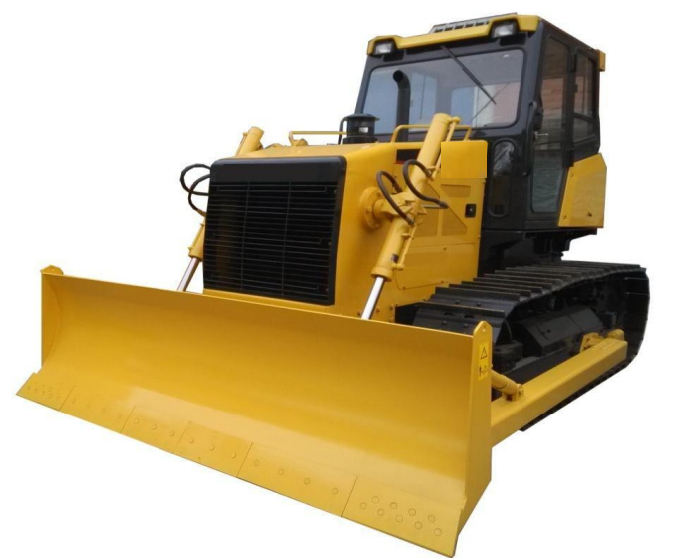

SD12 Standard Bulldozer

SD12 Standard Bulldozer

Filter applied in desert is more applicable for coal reserve site, desert and other special work condition.
CONTACT US
SD12 Standard Bulldozer
SD12 Standard Bulldozer
SD12 Standard Bulldozer

Product parameters:


基本参数(Basic parameters)


性能参数(Performance            specifications


整机重量 Total weight (kg )


13000


前进 1-4 档

Forward 1-4 gear km/h )



2.6~ 10.6


发动机标定功率/转速

Engine rated power /speed

(kw/ r/min)



93/2000


后退 1-2 档

Reverse 1-2 gear km/h )



3.8 ~7.0


发动机燃油消耗率

Fuel consumption of the

engine (g/km.h )



≤246


接地比压 Land pressure (kPa )


51


发动机最大扭距

Engine max torque (N.m )



526





整机尺寸(Dimensions)


作业范围及参数(Operating scope  and parameters


总长(mm)Overall length


5506


铲刀最大提升高度

Blade max lifting height( mm )


894


总宽度(mm)Overall width


3135


铲刀入土深度

Blade max digging depth

( mm )


400


总高度(mm)Transport         height


3230


牵引装置/松土器(选装)

Towing

equipment/Ripper(optional)


固定式/三齿

Fixed/three-toothed


推土铲(宽)

Bulldozer shovelW (mm )


3135




推土铲(高)

Bulldozer shovel H(mm )


970




履带宽度

Caterpillar track board

width mm



500








Product features:

1、Engine: Choose the engine produced with British Ricardo joint-venture technology, which conforms to National II emission standard, and features low noise, large torque, energy efficient and environmental friendliness.

2、Main clutch comprises of dry, dual-sheet and common combined with, bigger in torque, simpler in construction, more reliable and easier in maintenance.

3、Gear box is applied to 4F plus 2R mechanical shift, higher in efficiency, simpier in operation, easier in maintenance and more reliable in operation.

4、Turning clutch: Choose dry and multi-piece turning clutch, manually operation with hydraulic pressure, easily maintaining, lightly and conveniently operation.

5、Filter applied in desert is more applicable for coal reserve site, desert and other special work condition.

6、Operation environment is fully closed, hexahedral cab with lower noise, effectively reducing noise beside your ear, extending your visual field and effectively improving comfort;

7、Electric system is characterized by electronic monitor, making real-time monitor for complete machine to assure normal operation;

8、Standard heating and ventilation equipment, air conditioner is optional.

9、Operation device: several devices such as direct- pouring shovel, environmentally shovel, angle shovel, coal-pushed shovel and soil scarifier are available for user.
