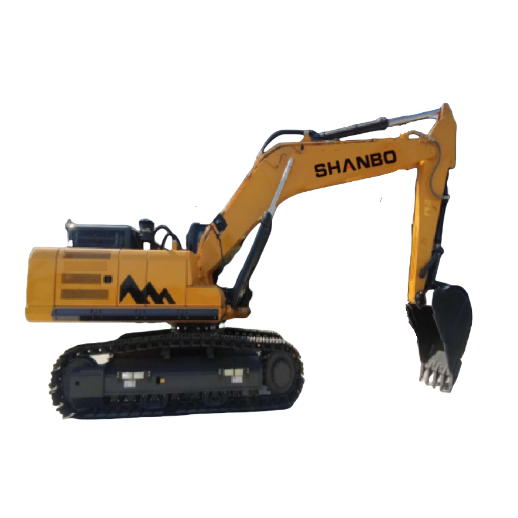

Large excavator  SH520

Large excavator SH520

Large electric crawler excavator
CONTACT US
Large excavator  SH520

Product parameters:

基本参数

Basic parameters

性能参数

Performance specifications

工作重量( KG

Workingweight


50500

行走速度(高/低km/h         Travel speed(H/L)


3.2/5.3

发动机额定功率(kw/rpm)  power

280/2000

回转速度(rpm)

Swing speed

8.9

铲斗容量( m3)Bucket Capacity

2.5-3.5

爬坡能力( 35°)  Gradeability

70%

行走马达

Walking motor

力士乐/OK

燃油箱容量( L)

Hydraulic  tank capacity

650

发动机型号

Engine Model


康明斯QSM11

最大挖掘力( KNMax.digging force

272

液压系统

Hydraulic System

韩国川崎Kawasaki

排量( L) Displacement

11

整机尺寸

Dimensions

作业范围

Working scope

总长(运输时) (mm)

Overall  length

12545

最大挖掘高度(mm

Max. digging height

11210

总宽度(mm)

Overall width

3490

最大卸载高度(mm

Max.dumping height

7814

总高度(动臂顶部) (mm)

 Transport height

3590

最大挖掘深度(mm)

 Max. digging depth

7344

上部宽度(mm)

Overall width    of upperstructure

3322


最大垂直臂挖掘深度(mm)

Max. vertical wall digging

depth

6512


总高度(驾驶室顶部 (mm)     Overallheight of cab

3286

最大挖掘距离(mm

Max. digging reach

11774

标准履带板宽度(mmShoe  width

600

最小回转半径(mm)

Min. swing radius

4919

轨距(mm)

Track gauge

2890

尾部回转半径(mm

Tail  swing radius

4110

最小离地间隙(mm)

Min.groundclearance

696

履带接地长度(mm)

 Track  ground length

6733


Product features:

 Energy saving and environmental protection

 pure electric mode, strong power and cost saving.

Adjustable Pitch Traveling Frame

Improves the stability of the excavator and facilitates the transportation work by providing a walking frame with adjustable spacing for transportation.

Integrated suspension seat

The two-stage slide-to design has a larger adjustment range to meet the needs of different operators. Adoption of cascading damping damping device can effectively offset bad vibration and effectively reduce driver fatigue.

Easy and comfortable operation

The operating handle is carefully designed according to the driver's height and operating habits, allowing you to maximize the pleasure of driving. Convenient and durable hydraulic locking lever, to maximize the security while saving the time of getting on and off the excavator.

Fully automatic air conditioning

Dual-layer control function realizes a comfortable environment with cool head and warm feet Intelligent control and multi-directional air vents.
