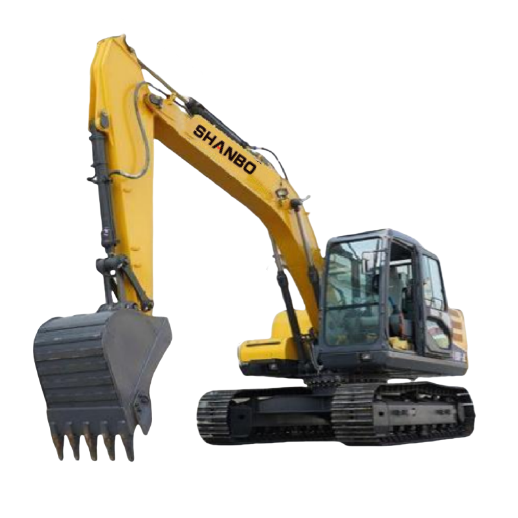

Large excavator SH380-Crawler electric excavator-

基本参数 Basic parameters		性能参数 Performance specifications
工作重量（ KG）Workingweight	37000	行走速度（高/低km/h） Travel speed	5.0/3.0
发动机额定功率(kw/rpm) power	212/2000	回转速度(rpm) Swing speed	9.7
铲斗容量（ m3）Bucket Capacity	1.62-1.82	爬坡能力（ 35°) Gradeability	70%
液压系统Hydraulic System	林德Linde	燃油箱容量（ L） Hydraulic tank capacity	580
行走马达 Walking motor	力士乐/OK	排量（ L） Displacement	7.79
发动机型号 Engine Model	五十铃6HK1X
整机尺寸 Dimensions		作业范围 Working scope
总长（运输时） (mm) Overall length	11161	最大挖掘高度(mm) Max. digging height	11056
总宽度(mm) Overall width	3200	最大卸载高度(mm) Max. dumping height	6905
总高度（动臂顶部）(mm) Transport height	3347	最大挖掘深度(mm) Max. digging depth	6755
上部宽度(mm)Overall width of upperstructure	3195	最大垂直臂挖掘深度(mm) Max. vertical wall digging depth	6452
总高度（驾驶室顶部）(mm) Overallheight of cab	3293	最大挖掘距离(mm) Max. digging reach	10645
标准履带板宽度(mm) Shoe width	600	最小回转半径(mm) Min. swing radius	4418
最小离地间隙(mm) Min.groundclearance	565
尾部回转半径(mm) Tail swing radius	3438
履带接地长度(mm) Track ground length	5872

Energy saving and environmental protection

pure electric mode, strong power and cost saving.

Adjustable Pitch Traveling Frame

Improves the stability of the excavator and facilitates the transportation work by providing a walking frame with adjustable spacing for transportation.

Integrated suspension seat

The two-stage slide-to design has a larger adjustment range to meet the needs of different operators. Adoption of cascading damping damping device can effectively offset bad vibration and effectively reduce driver fatigue.

Easy and comfortable operation

The operating handle is carefully designed according to the driver's height and operating habits, allowing you to maximize the pleasure of driving. Convenient and durable hydraulic locking lever, to maximize the security while saving the time of getting on and off the excavator.

Fully automatic air conditioning

Dual-layer control function realizes a comfortable environment with cool head and warm feet Intelligent control and multi-directional air vents.
