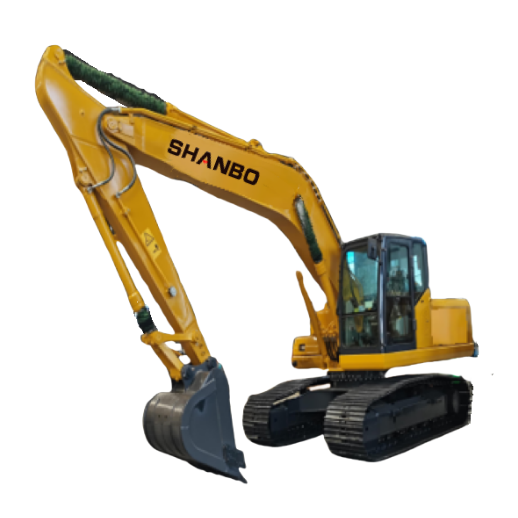

Medium-sized electric excavator  SH220

Product parameters:

基本参数Basic parameters

性能参数Performance   specifications

工作重量( KGWorkingweight


22300

行走速度(H/Lkm/h) Travel speed


5.5/3.3

发动机额定功率(kw/rpm) power

135/2050

回转速度(rpm)

Swing speed


11

铲斗容量( m3Bucket Capacity

1.0-1.2

爬坡能力( 35°)  Gradeability

70%

液压系统

Hydraulic System

林德Linde

接地比压

Grounding specific pressure

43.2

行走马达

Walking motor


日本纳博NABTESO

斗杆挖掘力KNArmdigging  force

153

发动机型号

Engine Model

康明斯CumminsQSB7.0



整机尺寸Dimensions

作业范围Working scope

总长(运输时) (mm)

Overall    length


9425

最大挖掘高度(mmMax. digging height

10000

总宽度(mm)

Overall width


2980

最大卸载高度(mmMax. dumping height

7110

总高度(动臂顶部(mm)

Transport height

2970

最大挖掘深度(mmMax. digging depth

6620

上部宽度(mm)

Overall width    of upperstructure


2710


最大垂直臂挖掘深度(mm)

Max. vertical wall digging

depth

5980

总高度(驾驶室顶部)

(mm)

Overallheight of cab

3040

最大挖掘距离(mmMax. digging reach

9875

标准履带板宽度(mm)

Shoe  width

600

最小回转半径(mm) Min.swing radius

3040

最小离地间隙

(mm)

Min.groundclearance


440



尾部回转半径(mm)

Tail swing  radius


2710



履带接地长度(mm)

Track  ground length

3480




Product features:

 Energy saving and environmental protection

pure electric mode, strong power and cost saving.

SH220 excavator will bring safe and comfortable driving experience.

SH220 excavator is equipped with a brand new cab, which has a wide field of vision, lower noise, more comfortable operating environment, optimized design of the cab silicone oil shock absorber can reduce the vibration of the cab to a minimum, and the cab is installed with imported brand of powerful air conditioning and integrated control panel.

The seat of SH220 Excavator can be adjusted for more comfortable working.

SH220 excavator is equipped with ROPS anti-roll cab as standard, which improves the safety coefficient of the driver, and optional cab protection net and anti-collision side beams, which is more suitable for the mining operation environment.

The inner and outer air conditioning filters of SH220 excavator can be simply removed and easily cleaned, and it is equipped with a negative switch, which can cut off the power supply of the whole vehicle conveniently and quickly.
