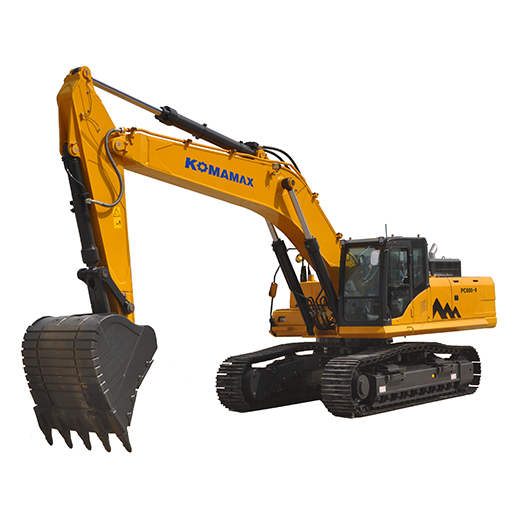

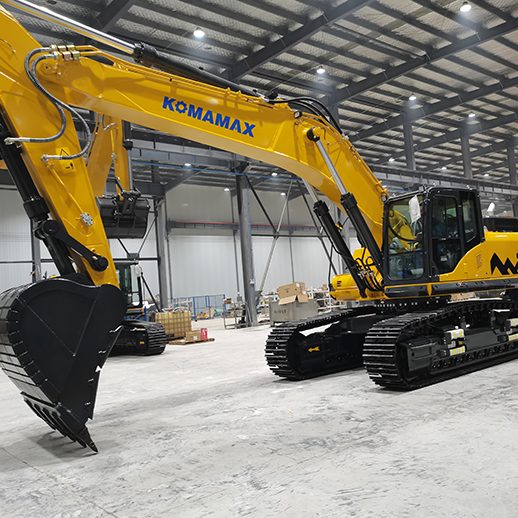

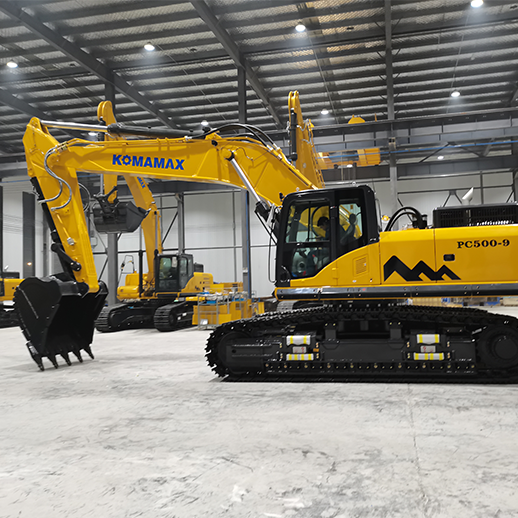

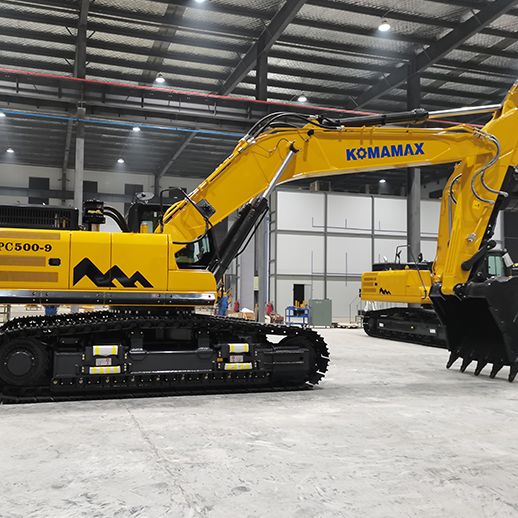

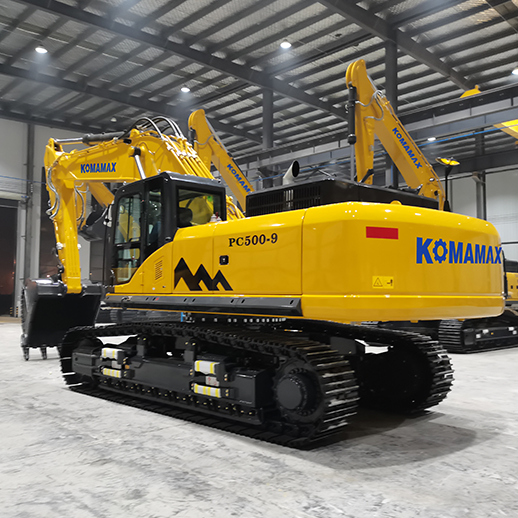

Medium And Large Excavator-Medium And Large Excavator-

Basic parameters of the whole machine	Working weight：	49600mm
	Overall length	12090mm
	Overall width	3490mm
	Transport height	3590mm
	Overall width of upperstructure	3195mm
	Overall height of cab	3276mm
	Shoe width	600mm
	Track gauge	2890/2392mm
	Min. ground clearance	686mm
	Tail swing radius	3655mm
	Track ground length	6723mm
	Track length	5460mm
Working Range	Max. digging height	10924mm
	Max. dumping height	7615mm
	Max. digging depth	7800m
	Max. vertical wall digging depth	7066mm
	Max. digging reach	12016mm
	Min. swing radius	4825mm
Dynamical system	Engine Model	QSM11
	Cylinders	6X125X150
	Displacement	11
	Power	280kw/2000rpm
Hydraulic System	Operating Pressure	34MPa
	Pump	Kawasaki
	Valve	Toshiba
	Walking motor	Rexroth
performance parameter	（SAE）Bucket Capacity	2.5-2.8
	Climbing ability	70%（35°）
	Maximum digging force	290
	Travel speed	3.2/5.3
	Unit swing speed	9.6r/min
	Hydraulic tank capacity	650
