Basic parameters
Working weight： | 21300KG |
Power | 124KW/2000rpm |
Bucket Capacity | 0.8-1.1m3 |
Hydraulic System | Linde |
Walking motor | NABTESCO |
Engine Model | Cummins QSB7.0 |
Dimensions：
A | Overall length
| 9425 |
B | Overall width | 2980mm |
C | Transport height | 2970mm |
D | Overall width of upperstructure | 2710mm |
E | Overall height of cab | 3040mm |
F | Shoe width | 600mm |
G | Track gauge | 2380mm |
H | Min. ground clearance | 440mm |
I | Tail swing radius | 2710mm |
J | Track ground length | 3275mm |
K | Track length | 4070mm |
Performance specifications：
| A | Machine Weight | 21300kg |
| B | Bucket capacity | 0.8-1.1m³ |
| C | Rated Power | 124/2050KW/rpm |
| D | Travel speed(H/L) | 5.5/3.3km/h |
| E | Swing speed | 11 |
| F | Gradeability | 70% |
| G | Ground pressure | 48.6kpa |
| H | Bucket digging force | 150KN |
| I | Arm digging force | 109KN |
Working scope：
A | Max. digging height | 10000mm |
B | Max. dumping height | 7110mm |
C | Max. digging depth | 6620mm |
D | Max. vertical wall digging depth | 5980mm |
E | Max. digging reach | 9875mm |
F | Min. swing radius | 3040mm |
G | Max. Height at Min. swing radius | 8060mm |

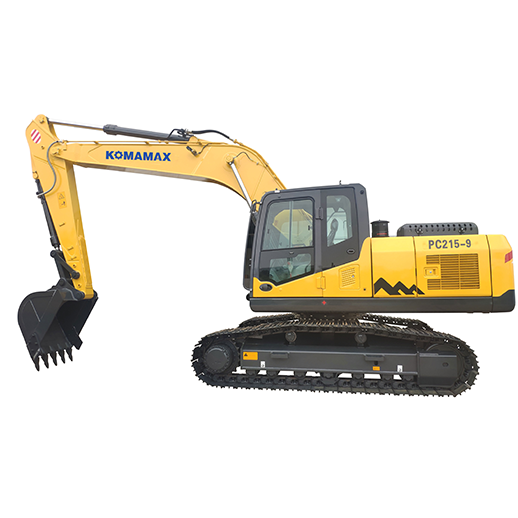

(Note) Due to the continuous updating of technology, materials and technical specifications are subject to change without notice. The machine in the photo may include additional equipment.
