PW45 Electric wheel excavator-Electric wheel excavator-

Product parameters：

整机基本参数Basic parameters of the whole machine	整机重量Total weight	4000KG
	运输时总长shipping length	4530(mm)
	运输时总高 Total height during transportation	2750(mm)
	运输宽度Transport width	1600(mm)
	轮胎中心距离Tire center distance	2210(mm)
	配重离地间隙 Counterweight ground clearance	883(mm)
	轮胎数量umber of tires	8-650
	动臂长度Boom length	2400(mm)
	斗杆长度Stick length	1200(mm)
工作范围 Working Range	最大挖掘高度Max.Digging Height	3840(mm)
	最大卸载高度Max.Dumping Height	3050(mm)
	最大挖掘深度Max.Digging Depth	2100(mm)
	最大挖掘范围Max.Digging radius	4300(mm)
	最小回转半径Minimum radius of gyration	1250(mm)
	推土铲上/下Maximum lifting upper/lower	400/300(mm)
动力系统Dynamical system	发动机型号Model	LD490
	额定功率power	34KW
	冷却方式Cooling method	直列四缸水冷直喷Inline four-cylinder water-cooled direct spray
液压系统Hydraulic System	额定工作压力Operating Pressure	22mpa
	回转马达Rotary motor	柱塞Plunger
	主泵Main pump	变量柱塞Variable plunger
性能参数performance parameter	铲斗容量（SAE）Bucket Capacity	0.26m³
	最大挖掘力Maximum digging force	55.6KN
	行走速度Travel speed	2.2KM/h
	回转速度Unit swing speed	9-11r/min

Product features：

Wheeled energy-saving and environment-friendly electric excavator.

1. Energy saving and environmental protection: the electric mode is energy saving and environmental protection, with strong power.

2. High efficiency and durability: A unique intelligent matching control system is adopted to realize the perfect matching between the engine and the main pump. Maximize the output power of the engine, make the action faster and work longer;

3. Stability and reliability: the installation durability is better, and the boom and the forearm can also withstand the strong impact and pressure during operation under harsh working environment;

4. Humanized design: the newly designed shock absorption system, over-the-horizon cab and multiple noise reduction design greatly improve the operating comfort.

PRODUCT

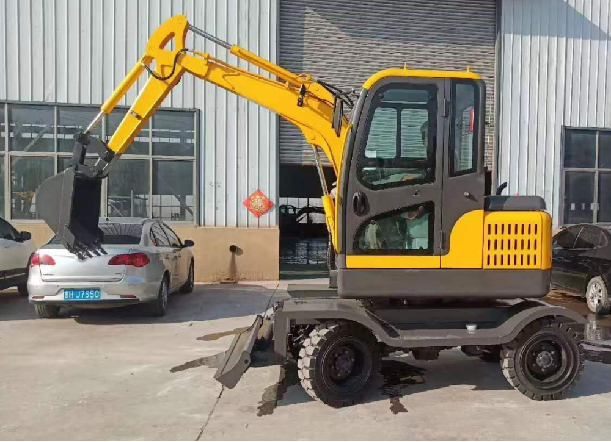

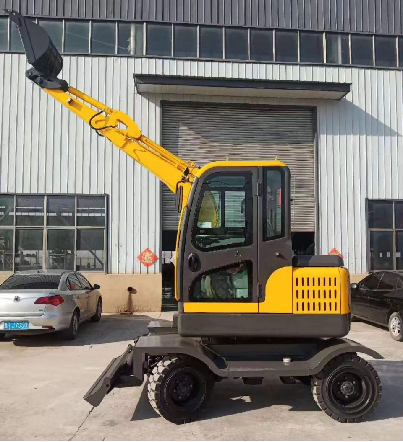

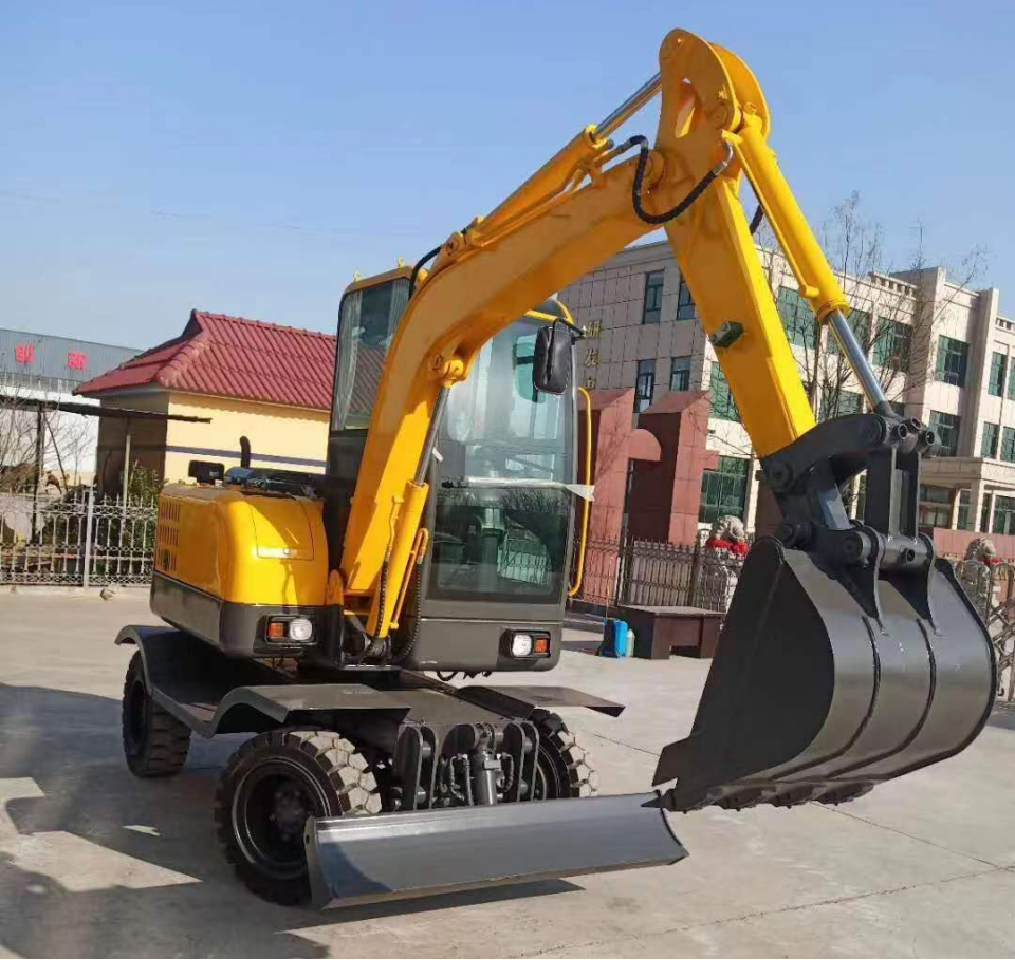

PW45 Electric wheel excavator
