技术参数 Technical parameters | 单位 Unit | SL750S (中心提升) |
最大钻孔深度 Max drilling depth | M | 750 |
钻孔直径 Drilling diameter | mm | 105-450 |
推荐工作风压 Air pressure | Mpa | 1.6-6 |
推荐耗气量 Air consumption | m³/min | 16-75 |
钻杆长度 Drill pipe length | m | 6 |
推荐钻杆直径 Drill pipe diameter | mm | 89/102 |
轴压力 Axial pressure | T | 6 |
提升力 Lifting force | T | 40 |
快升速度 Fast lifting speed | m/min | 31 |
快进速度 Fast feeding speed | m/min | 65 |
最大回转扭矩 Max rotary torque | Nm | 13000/6500 或 15000/7500 |
最大回转转速 Max rotary speed | r/min | 95/190 |
大副卷扬提升力 Big auxiliary winch lifting force | T | - |
小副卷扬提升力 Small auxiliary winch lifting force | T | 2.5 |
支腿行程 Jacks stroke | m | 1.6 |
进尺效率 Drilling efficiency | m/h | 10-35 |
行走速度 Moving speed | Km/h | 3 |
爬坡能力 Uphill angle | 坡度（slope） | 21 ° |
机重 Weight of the rig | T | 14 |
外形尺寸 Dimension | m | 6.64*2.25 *2.67 |
发动机 Engine | / | 潍柴(Weichai ) 176KW |

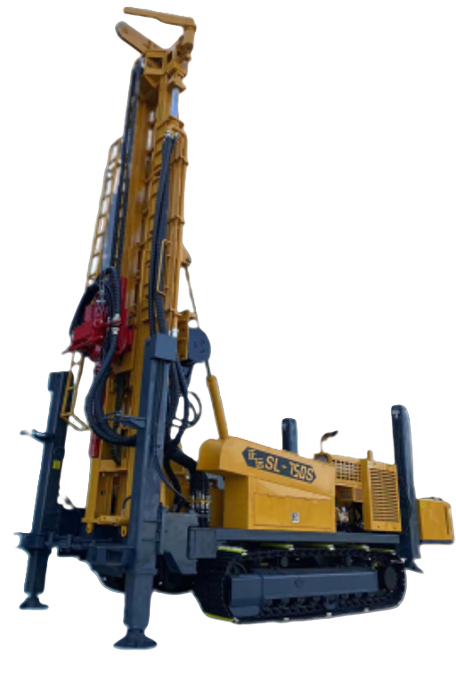

Shanbo water well drilling rig is an efficient top drive, full hydraulic and multifunctional drilling rig, which is widely used in drilling water wells, monitoring wells, dewatering wells, rescue wells, hot spring wells, ground source air conditioning holes, coalbed methane, natural gas, oil exploitation and other projects. This kind of drilling rig can use compressed air DTH drill or mud drill in various strata in high temperature, cold and plateau areas, and has high drilling speed in rocks with Platts hardness f=4-20.
Working conditions: loose stratum and stone head.
Drilling mode: top drive hydraulic rotary hammer or mud drilling.
Optional accessories: mud pump, centrifugal pump, generator and foam pump.
