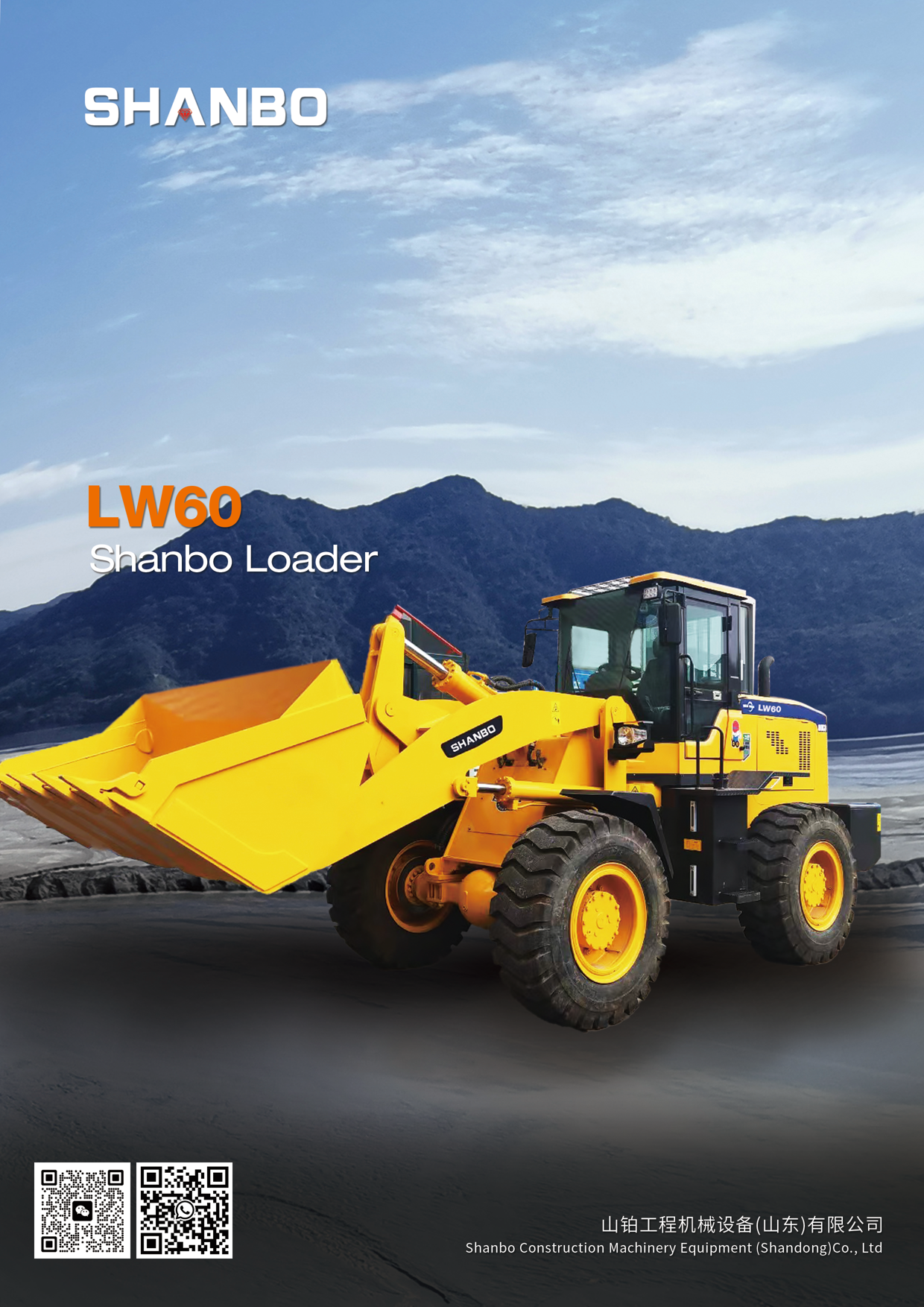

LW60 Mechanical loader-Mechanical loader-

LW60 SPECIFICATIONS
标准斗容量 Standard bucket capacity	3/5m³	爬坡能力 Climbing ability	30%
铲斗额定载荷 Rated load of bucket	4000kg	外侧轮胎Outer tire	6530mm
最大卸载高度 Maximum unloading heigh	3322mm	外侧铲斗Outer bucket	7665mm
发动机功率 Engine power	175kw	最大前进速度Maximum forward speed	38km/h
发动机品牌 Engine brand	潍柴	最大行驶速度Maximum driving speed	17km/h
发动机型号 Engine model	WD10G240E21	档位数，前进挡Number of gears, forward gear	4
发动机最大扭矩 Maximum engine torque	900N.m	齿轮数，转速 Number of gears, rotational speed	4
排量Exhaust	9.726L	发动机机油Engine oil.	28ml
整机工作质量Working weight of the whole machine	21000kg	发动机冷却液Engine coolant	80L
最大高度的卸载距离Unloading distance at maximum height	1200mm	燃油箱Fuel tank	270L
最大牵引力 Maximum traction force	172KN	液压油箱Hydraulic fuel tank	270L
铲斗尺寸Bucket size	3-5m³	总长度Total length	8692mm
转向角 Steering angle	35°	总宽度Total width	3082mm
轴距 Wheelbase	3400mm	总高度Total height	3548mm
