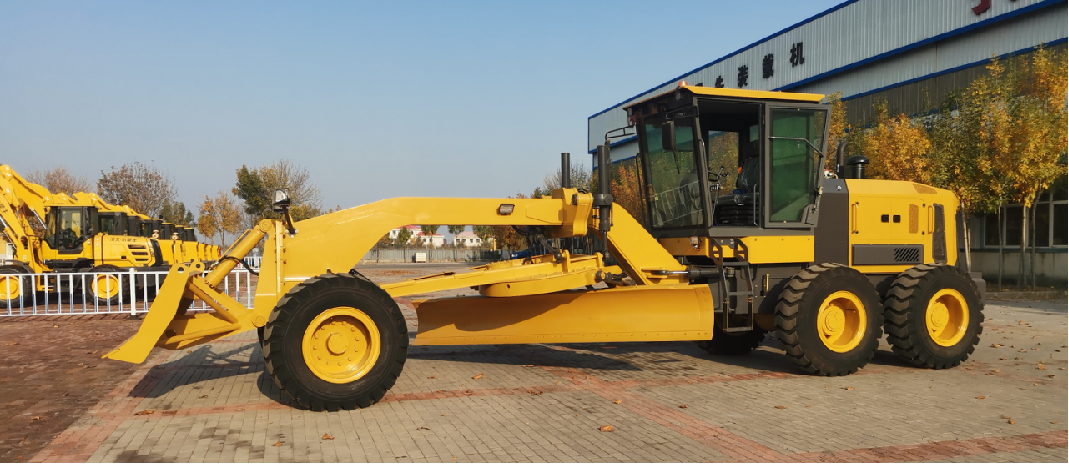

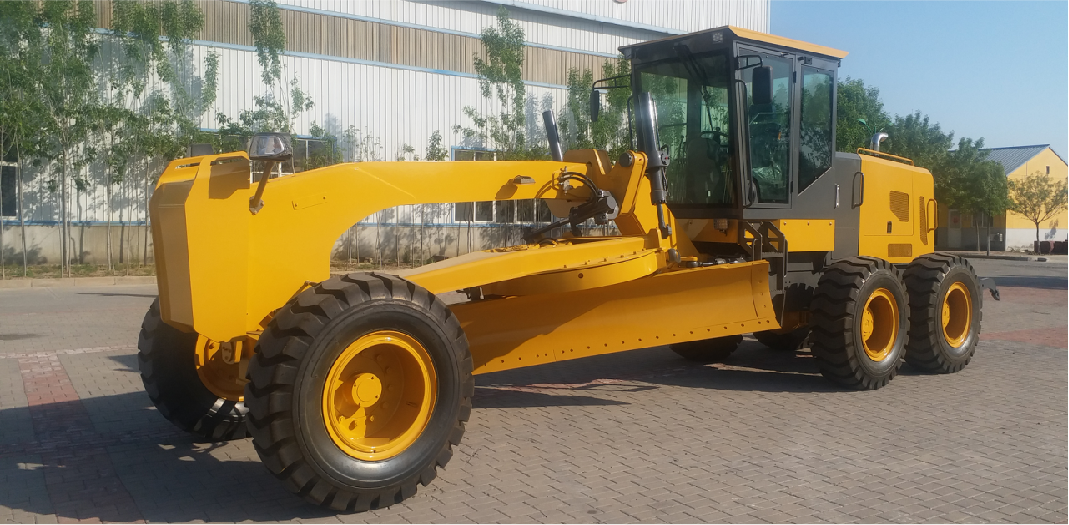

Grading machine PY160-Road grader-

Overall dimension 整体尺寸	L×W×H长×宽×高	8900×2450×3350mm
	Mini ground clearance of front axle前轴的最小离地间隙	460mm
	Ground clearance of rear axle后轴的离地间隙	420mm
	Wheel tread车轮胎面	1805mm
	wheel base轴距	7300mm
	Length of blade刀片的长度	3950mm
	Wheelbase of rear axles后轴的轴距	1650mm
Engine 引擎	Mode型号	WP6G175
	Rated power/speed额定功率/速度	175hp/2400
	Certified capacity	6.75L
	Minimum fuel consumption rate最低油耗率	≤230g/(kw.h)
Overall parameters 总体参数	Overall weight 总体重量	12500kg
	Max.swinging angle of front axle前轴的最大摆动角度	±16°
	Max steering angle of front wheel前轮的最大转向角度	±45°
	Steering angle of articulated frame铰接框架的转向角度	±25°
	Cutter diameter刀具直径	1500mm
	Cutter size(L×H×T)刀具尺寸（长×高×长	3952×600×20mm
	Swing angle of balde摆动角度	360°
	Ground clearance of blade刀片的离地间隙	450mm
	Cutting depth of blade刀片的切割深度	360mm
