KS182D  Single drum vibratory roller

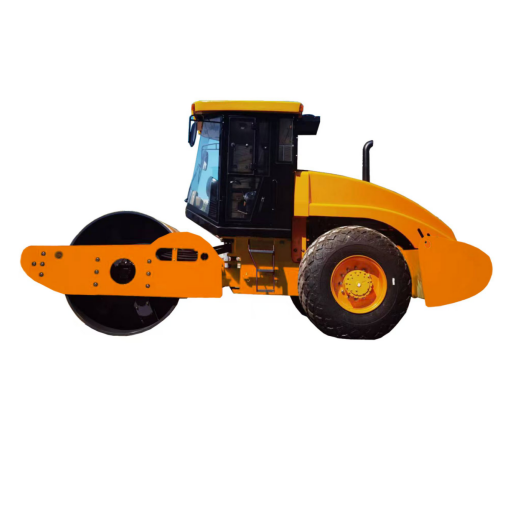

KS182D Single drum vibratory roller

KS182D is a full-hydraulic double-drive vibratory roller, which is suitable for the compaction of foundation and sub-foundation with high productivity and large compaction thickness. It is an ideal compaction equipment in the construction of high-grade highways, railways, airports, parking lots and water conservancy projects.
CONTACT US
KS182D  Single drum vibratory roller

Product parameters:

项目Item

单位unit

KS182D

工作质量 Operating mass

kg

18000

静线载荷 Staticlinear load

N/cm

488

振幅  Amplitude

mm

1.9/0.9

振动频率 Vibrating frequency

Hz

28/33

激振力 Centrifugal force

kN

350/245

振动轮宽度 Width of vibratin drum

mm

2110

振动轮直径 Diameter of vibration drum

mm

1540

速度范围 Speed range

km/h

0-9

爬坡能力 Grade ability

%

45

转弯半径 Turing radius

mm

6500

最小离地间隙 Min.ground clearance

mm

440

转向角Steering angle

°

±32

摇摆角Swing angle

°

±12

发动机品牌 Engine brand

-

潍柴

排放标准

-

国三

发动机功率 Engine power

kW

140

燃油箱Fuel tank

L

300

液压油箱Hydraulic oil tank

L

180

长度 Length

mm

6380

宽度 Width

mm

2300

高度 Height

mm

3150


Product features:

1. Weichai WP6 turbocharged engine, with a power of 140kW, has fast start, durability and fuel economy.

2. The internationally famous brand hydraulic traveling system, together with the domestic famous engineering driving axle, constitutes a nearly perfect traveling transmission system. The steel wheel reducer has a wet brake with spring compression and hydraulic release, and the drive axle has a differential and a wet brake; The bridge motor is a large torque motor, which can easily adapt to the requirements of speed and traction in various working conditions.

3. The closed hydraulic vibration system of an international famous brand is composed of two-point variable pump and quantitative motor controlled by electro-hydraulic, realizing double-frequency and double-amplitude vibration.

4. The vibrating wheel adopts reinforced internal diaphragm structure, which has high support rigidity; Four-point-supported impact-resistant reinforced vibration bearing improves the bearing's stress condition; Carefully designed bearing seat with lubricating oil channel has good lubrication and heat dissipation performance; Under the strong alternating load, the excellent performance and long-term reliability of the vibration bearing can still be guaranteed.

5, linkage control of unpowered braking, safe and reliable.

6. One-lever operation has high safety and low labor intensity.

7. The hood has a large opening angle, and the repair and maintenance points are within reach.

8. The cab is equipped with heating and cooling air conditioning for high comfort.

9, optional fuel heater system, meet the high and cold environment low temperature start.

10. The compaction quality can be directly observed in the cab by selecting a density detector.

11, container transportation, saving transportation costs for customers.

12, small tread tires, greater adhesion.

13. Optional detachable bump, which can be used for two purposes.
